Origin:USA

Brand:bently

Product ID:3500/05-01-02-00-00-01

product description

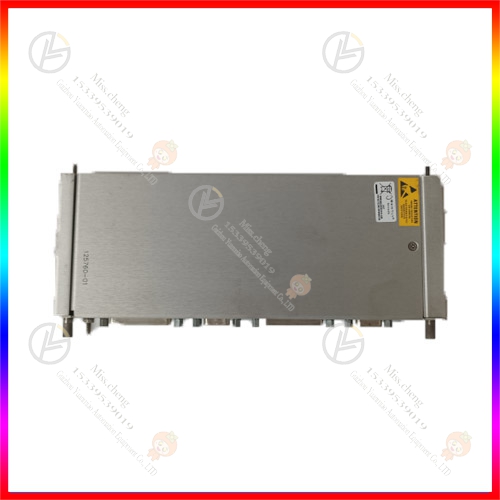

Part of Bently Nevada's 3500 series mechanical monitoring system, the 3500/05 is a

rack power module that allows modules to communicate with each other, using System1

software and a power supply to assign power to each module as needed.

In addition, the 3500/05 has the following features:

A rack with an internal safety gate requires a 3500/04-01 internal safety gate ground

module to provide an IS ground connection to the 3500/05 rack. This grounding module

requires a dedicated rack slot.

The SystemDisplayA01 SystemFaceMount option of 3500/93 SystemDisplay is not

compatible with the 3500/05 small rack.

The partition mounting option is not available for the 3500/05 small frame.

When using a 3500 small rack in an EIA rack, 144863-0119 inch EIA adapter panel is required.

3500 Small rack requires version 2.70 or higher of 3500/01 software.

The working principle of the 3500/05 rack power module is mainly based on power

electronics technology and control circuit technology. Its core is the switching power

device and the control circuit.

Switching power devices are the key components responsible for power conversion.

When the switching device is on, the 3500/05 rack power module is capable of converting

input power to output power. Switching devices usually use semiconductor devices

such as MOSFET, BJT, IGBT, etc., whose main role is to achieve the discontinuity of

electrical energy conversion to provide the required stable voltage or current.

The control circuit is an important part of realizing the accurate adjustment and stabilization

of the power module. It mainly includes comparator, feedback circuit, circuit protection and

so on. Among them, the comparator is the core part, its role is to compare the feedback

information with the set value, so as to control the size and stability of the output voltage

or current. The feedback circuit is responsible for monitoring the change of output voltage

or current, and sends the feedback signal back to the comparator, so that the power module

can adjust the output power in time to meet the needs of various circuits. Circuit protection

plays an important role in ensuring the normal operation of the power module, which can

detect and protect the key components of the power module, such as switching devices,

capacitors, inductors, etc.

In addition, the efficiency of the power module is also an important consideration. Efficiency

refers to the proportion of energy consumed by a power module to convert input electrical

energy to output electrical energy, usually expressed as a percentage. The higher the efficiency,

the less energy the power module consumes and the higher the output stability. The efficiency

of the power module is related to the nature of the switching device, the design of the control

circuit and the quality of the capacitor.

In summary, the working principle of the 3500/05 rack power module is based on power electronics

technology and control circuit technology, through the switching power device and control circuit

to achieve electrical energy conversion and accurate regulation. At the same time, high efficiency

is also one of its important characteristics.
